Basler Ace L Camera
based on 15308 ratings.
Basler ace L GigE models
- 50mm x 40mm x 30mm housing
- Resolutions from VGA to 14 MP
- Speed up to 751 frames per second
- A variety of CCD , CMOS and NIR sensors
- Power over Ethernet (PoE) support
- Up to 100 meter cable lengths for maximum flexibility
| Model | Brand | Model | Format | Sensor | Color | Resolution | Frame Rate | Shutter | Interface |
|---|---|---|---|---|---|---|---|---|---|
| acA4096-11gc | Basler | ace | 1" | CMOS | Color | 9.0 MP | 12 fps | Global | GigE |
| acA4096-11gm | Basler | ace | 1" | CMOS | Mono | 9.0 MP | 12 fps | Global | GigE |
| acA4112-8gc | Basler | ace | 1.1" | CMOS | Color | 12.0 MP | 8 fps | Global | GigE |
| acA4112-8gm | Basler | ace | 1.1" | CMOS | Mono | 12.0 MP | 8 fps | Global | GigE |
Basler ace USB3.0 models

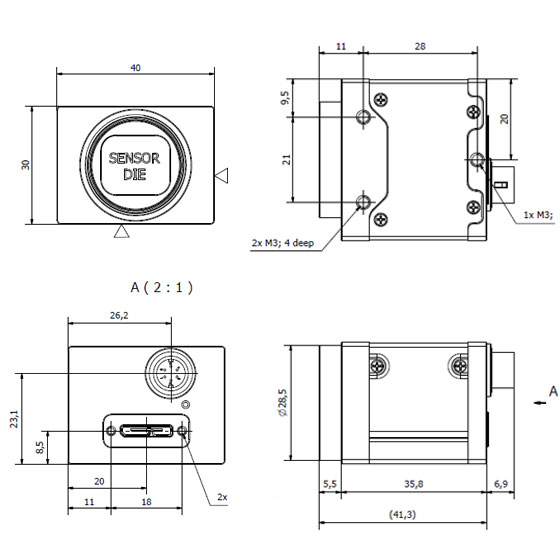

- 50mm x 40mm x 30mm housing
- Resolutions from VGA to 14 MP
- Speed up to 751 frames per second
- A variety of CCD , CMOS and NIR sensors
| Model | Brand | Model | Format | Sensor | Color | Resolution | Frame Rate | Shutter | Interface |
|---|---|---|---|---|---|---|---|---|---|
| acA4096-30uc | Basler | ace | 1" | CMOS | Color | 9.0 MP | 32 fps | Global | USB3.0 |
| acA4096-30um | Basler | ace | 1" | CMOS | Mono | 9.0 MP | 32 fps | Global | USB3.0 |
| acA4096-40uc | Basler | ace | 1" | CMOS | Color | 9.0 MP | 42 fps | Global | USB3.0 |
| acA4096-40um | Basler | ace | 1" | CMOS | Mono | 9.0 MP | 42 fps | Global | USB3.0 |
| acA4112-20uc | Basler | ace | 1.1" | CMOS | Color | 12.0 MP | 23 fps | Global | USB3.0 |
| acA4112-20um | Basler | ace | 1.1" | CMOS | Mono | 12.0 MP | 23 fps | Global | USB3.0 |
| acA4112-30uc | Basler | ace | 1.1" | CMOS | Color | 12.0 MP | 30 fps | Global | USB3.0 |
| acA4112-30um | Basler | ace | 1.1" | CMOS | Mono | 12.0 MP | 30 fps | Global | USB3.0 |
