Sentech Camera We offer the best quality Analog Camera

Sentech Analog Camera

10 out of 10 based on 363 ratings.


The advantages of the Sentech Analog Cameras series include:

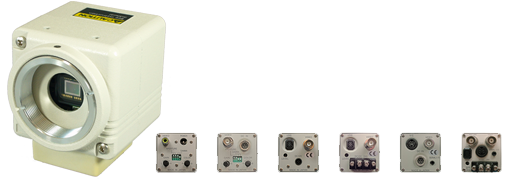

Sentech offers an extensive range of analog cameras in both board, cased and OEM configurations. These cameras have been designed for a wide range of applications: microscopy, medical equipment, endoscopic equipment, otoscopes, spectrometers, physically abusive environments, hand held instrumentation, inter-oral cameras, bar code readers and even sophisticated machine vision systems. These cameras are feature rich, provide excellent images and proven dependable performance.


Model Brand Series Format Signal Color Resolution Frame Rate Interface Size
STC-620 Sentech 600 1/2" NTSC Color 480 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-625 Sentech 600 1/2" PAL Color 480 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-630 Sentech 600 1/3" NTSC Color 480 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-635 Sentech 600 1/3" PAL Color 480 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-640 Sentech 600 1/4" NTSC Color 480 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-645 Sentech 600 1/4" PAL Color 480 TV Lines 30 fps Analog 51 x 51 x 55.5 mm

Model Brand Series Format Signal Color Resolution Frame Rate Interface Size
STC-N63 Sentech 60 1/3" NTSC Color 480 TV Lines 30 fps Analog 32 x 32 x Var. mm
STC-P63 Sentech 60 1/3" PAL Color 480 TV Lines 30 fps Analog 32 x 32 x Var. mm

The advantages of the Sentech Analog Cameras series include:

These monochrome cameras offers an extensive range of board, cased and remote head configurations. These cameras have been designed for a wide range of applications: microscopy, medical equipment, endoscopic equipment, otoscopes, spectrometers, physically abusive environments, hand held instrumentation, inter-oral cameras, bar code readers and even sophisticated machine vision systems. These cameras are feature rich, provide excellent images and proven dependable performance.


Model Brand Series Format Signal Color Resolution Frame Rate Interface Size
STC-E42A Sentech 40 1/2" EIA Mono 570 TV Lines 30 fps Analog 28 x 28 x 46.3 mm
STC-C42A Sentech 40 1/2" CCIR Mono 560 TV Lines 30 fps Analog 28 x 28 x 46.3 mm
STC-E43A Sentech 40 1/3" EIA Mono 570 TV Lines 30 fps Analog 28 x 28 x 46.3 mm
STC-C43A Sentech 40 1/3" CCIR Mono 560 TV Lines 30 fps Analog 28 x 28 x 46.3 mm

Model Brand Series Format Signal Color Resolution Frame Rate Interface Size
STC-170 Sentech 170 1/3" EIA Mono 570 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-175 Sentech 170 1/3" CCIR Mono 560 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-172 Sentech 170 1/2" EIA Mono 570 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-177 Sentech 170 1/2" CCIR Mono 560 TV Lines 30 fps Analog 51 x 51 x 55.5 mm

Model Brand Series Format Signal Color Resolution Frame Rate Interface Size
STC-160 Sentech 160 1/3" EIA Mono 570 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-165 Sentech 160 1/3" CCIR Mono 560 TV Lines 30 fps Analog 51 x 51 x 55.5 mm

Model Brand Series Format Signal Color Resolution Frame Rate Interface Size
STC-131 Sentech 130 1/3" EIA Mono 380 TV Lines 30 fps Analog 40 x 40 x 45 mm
STC-136 Sentech 130 1/3" CCIR Mono 380 TV Lines 30 fps Analog 40 x 40 x 45 mm

The advantages of the Sentech Analog Cameras series include:

The R640 Series is a 1/4" remote head NTSC camera, with cased or board-level models. The CCD board is 22 (L) x 8 (D) mm, making this camera ideal for tight configurations. The STC-R640 is offered without a mating cable between the CCU and CCD board.


Model Brand Series Format Signal Color Resolution Frame Rate Interface Size
STC-R640 Sentech 600 1/4" NTSC Color 480 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
STC-R645 Sentech 600 1/4" PAL Color 480 TV Lines 30 fps Analog 51 x 51 x 55.5 mm
